ADLINK

ADLINK Technology Inc.社は、テスト、測定、コンピューティングおよびオートメーションの分野に関する技術を高めることに常に努力しています。

このような背景を基に世界中のお客様へ優れた品質と費用効率に優れたソリューションを提供しています、 特に組込み用コンピューティング、測定およびオートメーションアプリケーションに関しては他社の追随を許すことなく、世界のトップランナとして活用しています。

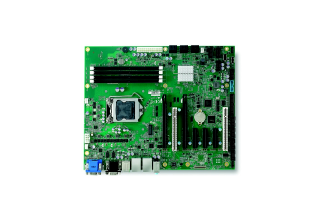

【ATX】IMB-M43

• Support the 6th Gen Intel® Core™ i7/i5/i3 processor
• Dual-channel DDR4 2133 MHz memory up to 64 GB in four DIMM slots
• PCIe 3.0 slot bifurcation supports up to 5x PCIe 3.0 expansion slots
• Rugged I/O design to enhance I/O port compatibility and reliability
• Total 5 PCIe slots, including 2x PCIe x16 Gen3 slot for graphics card combines with 3x PCIe x4 Gen3 slot for frame grabbers, and 2x PCI for Motion and I/O cards, to ideally suit industrial automation applications
• Unique power design to ensure stable USB power of 5V +-5% even USB full loading by 300W PSU, conversing TCO.
• Fully compatible with ADLINK's full spectrum of motion and I/O cards, and optimal system placement for motion/vision integrated solution.
• IEC 61000-4-2~6 (Performance Criterion A), CE/FCC class B certified

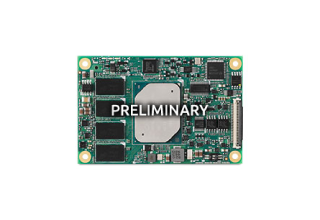

【COM Express】COM Express　ボードType10 nanoX-AL

• Intel® Atom™ E3900 Series, Pentium® and Celeron® SoC
• 2/4/8GB Dual Channel soldered DDR3L at up to 1867/1600MHz
• Intel® Gen9 Low Power graphics, 4k resolution/H.265 codec
• 4x PCIe x1 Gen2, GbE
• 2x SATA 6 Gb/s, 2x USB 3.0 and 6x USB 2.0, eMMC 5.0 (opt.)
• Supports Smart Embedded Management Agent (SEMA) functions
• Extreme Rugged operating temperature: -40°C to +85°C (build option for selected SKUs)

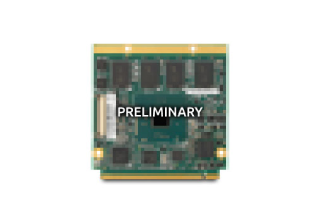

【Qseven】Q7-AL

• Triple display support
• USB 3.0
• Dual SATA3 6.0 GBit/s
• Fast LPDDR4
• Featuring Sema® for easy integration of Hardware monitoring and controlling
• Qseven 2.1 compliant

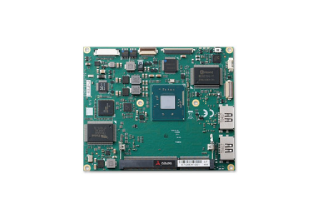

【ETX】ETX-BT

• Intel® Atom™ E3800 Series SoC and Celeron N2930/J1900 Processor
• Up to 4 GB non-ECC DDR3L at 1333 MHz
• Dual channel 24-bit LVDS and VGA
• 2x SATA or 2x PATA (Master only), 4x USB 2.0, 10/100 Mbps LAN (GbE via onboard connector)
• Extreme Rugged operating temperature: -40° to +85° (opt.)
• Supports Smart Embedded Management Agent (SEMA) functions

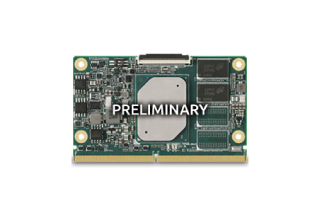

【SMARC】LEC-AL

• Dual or quad-core Intel® Atom E3900 Series or Pentium™ N4200 or Celeron™ N3350 Processor SoC
• Up to 8GB DDR3L at 1867 MT/s
• Triple display support
• Dual channel LVDS (18/24-bit)
• HDMI/DP++, DP++
• 2x MIPI CSI camera (2/4 lanes)
• 1x GbE with IEEE1588
• 1x SATA 3.0, onboard eMMC
